Four inspection gates before a serial number
Each gate has an owner, a checklist and an escalation path. Pre-shipment inspection is the only gate that can be outsourced — and we encourage it.
IQC — incoming
Cells, glass, encapsulant and frames are sampled against AQL limits on arrival. Rejected lots never reach the line.
IPQC — in-process
Stringer AOI, lamination temperature curves and frame torque are monitored live; deviations stop the line, not the batch.
OQC — outgoing

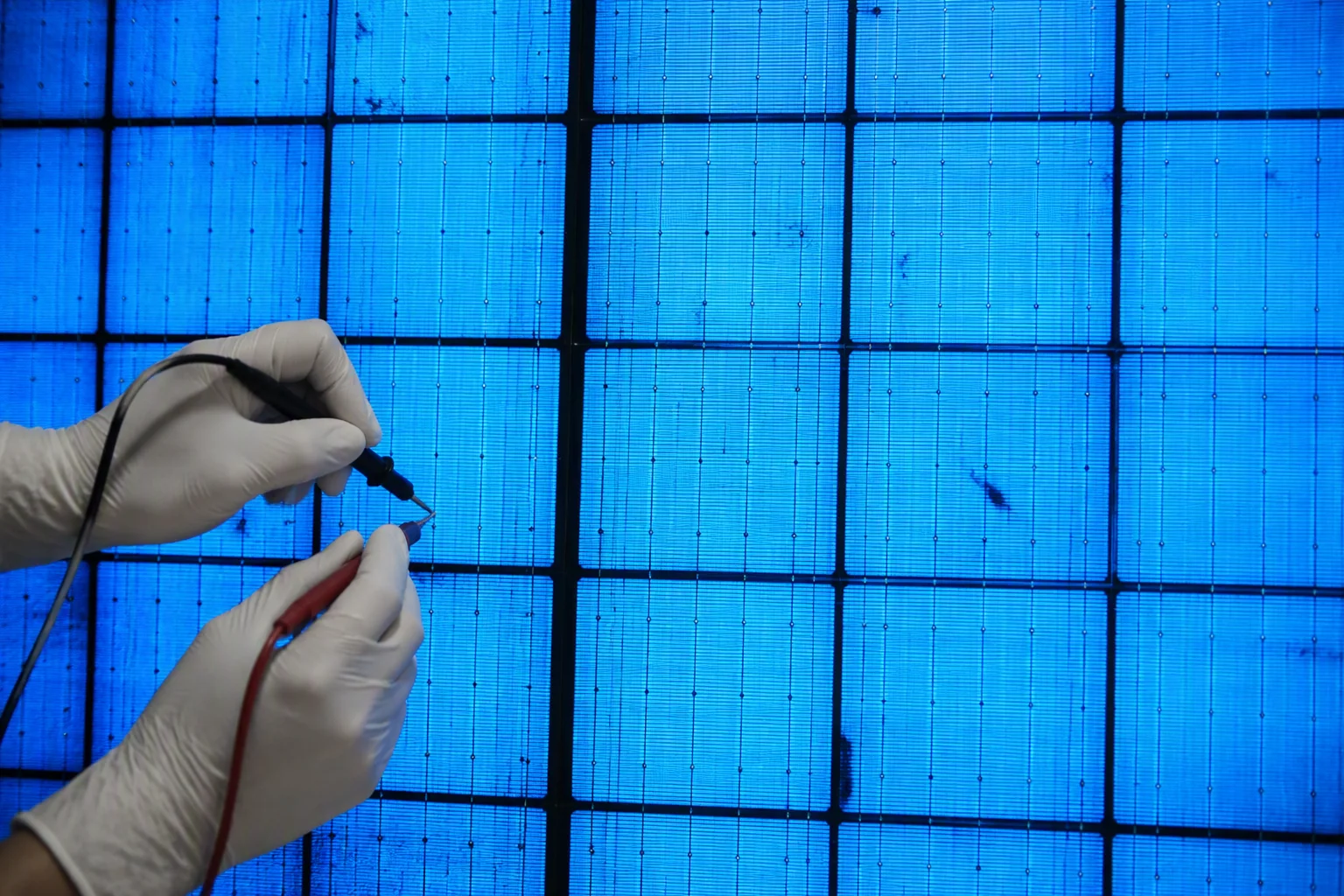

100% EL imaging, 100% IV flash at STC and visual/AOI checks on every finished module before packaging.
PSI — pre-shipment
Third-party inspection arranged within 3 working days; loading supervised with photo documentation of every pallet.
We break modules so your site doesn't
Sample testing follows the IEC 61215 sequence — the same stress tests your certification certificate is built on.

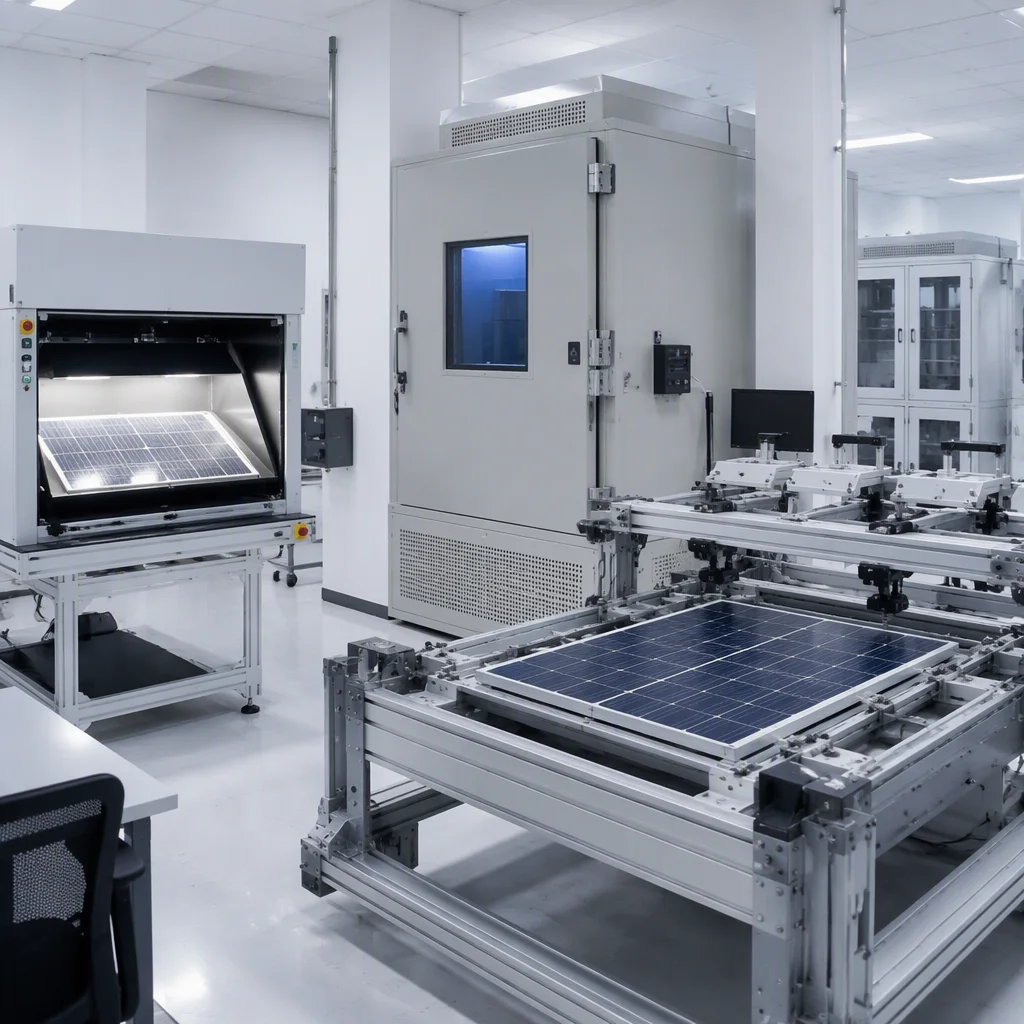

Climate & IV test benches
Climate chambers cycle modules through temperature and humidity profiles while the IV tester measures power before and after each stress — so degradation shows up as a curve, not a surprise.

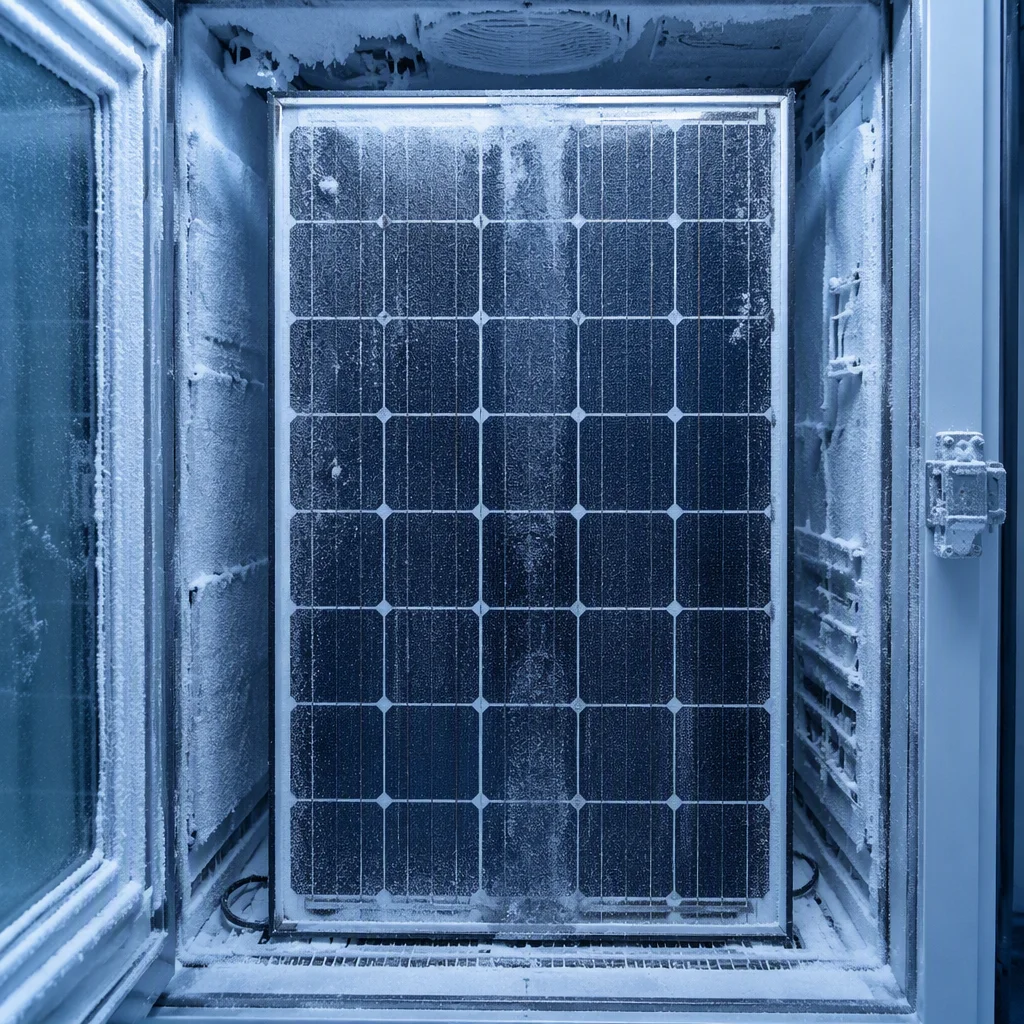

Thermal cycling & damp heat
TC200/TC600 thermal cycling between −40 °C and +85 °C, plus DH1000 damp heat at 85 °C / 85% RH, expose solder-joint and encapsulant weaknesses before shipment.

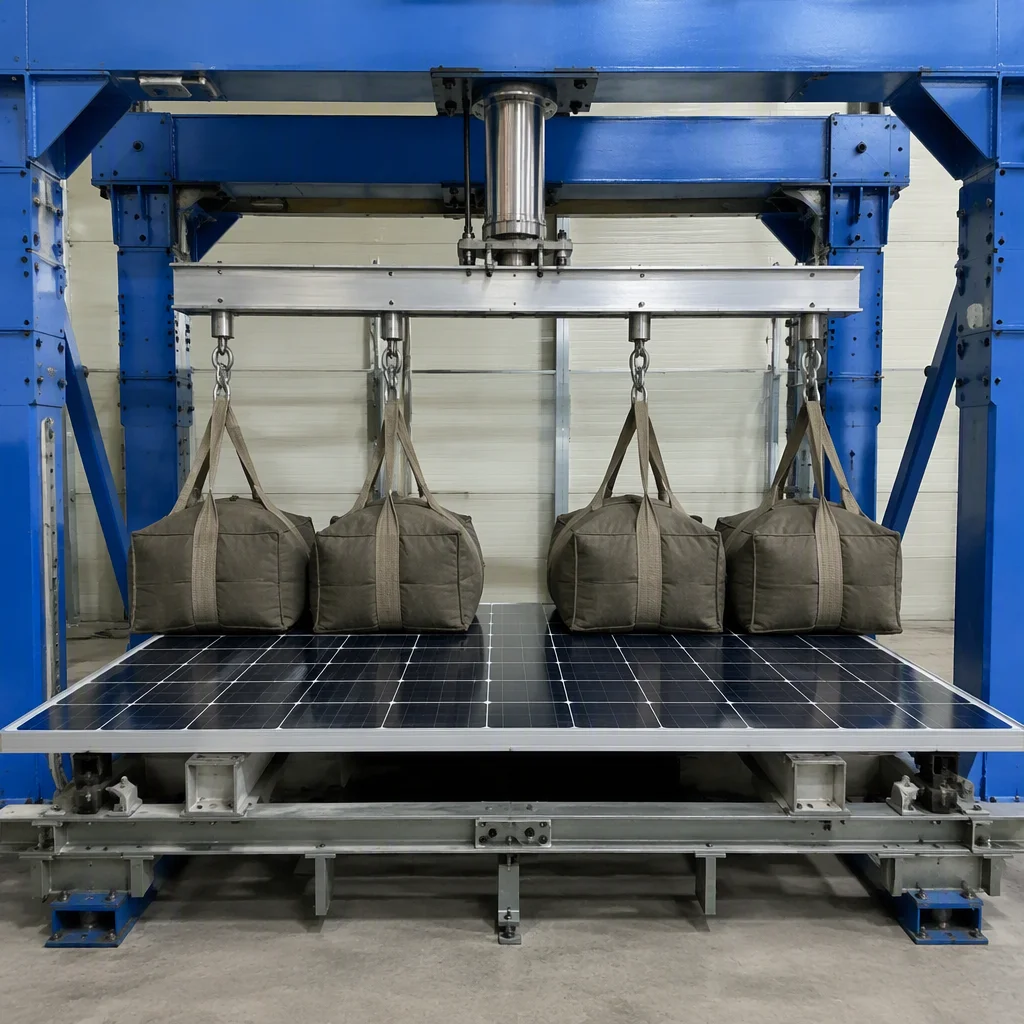

Snow, wind & hail
Mechanical load testing to 5400 Pa snow / 2400 Pa wind per IEC 61215, plus hail impact at 25 mm / 23 m/s. Bifacial dual-glass builds add a second glass layer for exposed sites.
What each test proves
The full test matrix — standard on every production line, reported per shipment.
| Test | Standard | Coverage |
|---|---|---|
| IV flash at STC | IEC 61215 | 100% of modules, Pmax stored per serial |
| EL imaging | IEC 61215 / 60904 | 100% of modules — microcrack and cell-finger detection |
| Visual / AOI | IEC 61215 | 100% of modules before packaging |
| Damp heat (DH1000) | IEC 61215 | 1000 h at 85 °C / 85% RH, sample basis |
| Thermal cycling (TC200/TC600) | IEC 61215 | −40 °C to +85 °C, 200/600 cycles, sample basis |
| UV preconditioning | IEC 61215 | Frontsheet and encapsulant UV resistance |
| Mechanical load | IEC 61215 | 5400 Pa snow / 2400 Pa wind static load |
| Hail impact | IEC 61215 | 25 mm ice ball at 23 m/s |
| Salt mist | IEC 61701 | Coastal and marine sites (optional) |
| Ammonia resistance | IEC 62716 | Farm and livestock environments (optional) |
| Fire performance | IEC 61730 | Class A option for rooftop markets |
| Test report delivery | — | Within 48 h of testing, PDF per shipment |
The certification stack your market requires
Baseline for every export order; market-specific additions on request. Certificate PDFs ship with the datasheet package.
Documents that open doors — and customs
Top-ten makers control ~75% of global shipments, so every other supplier must prove bankability one certificate at a time. Our stack is the export baseline: IEC 61215/61730, CE and ISO 9001/14001/45001, with UL 61730 — the successor to UL 1703 — for US/Canada entry, plus TÜV Rheinland and PVEL as third-party verification partners.
- IEC 61215 + IEC 61730 — performance and safety qualification
- UL 61730 — required for US and Canada market entry
- TÜV / PVEL — independent bankability signals for utility tenders
- Warranty backing — 15-yr product / 30-yr power, 87.4% at year 30
Add third-party PSI to any order.
We arrange inspection within 3 working days — and publish the report within 24 h of testing.
