Modules that
are the building.
BIPV turns the building envelope into the power plant: frameless glass-glass modules that work as roof, facade or balcony railing. Custom sizes, custom colors, engineering to your drawing — this is the building-integrated niche riding the same construction tailwind that pushed agrivoltaics past USD 5.5B inside a market that shipped 536 GW of modules in 2025, with EU net-zero building policy pulling demand behind it.
| Pmax | 200 W |
|---|---|
| Efficiency | 21.8% |
| Dimensions | 1300×700 mm |
| Warranty | 15 / 30 yr |

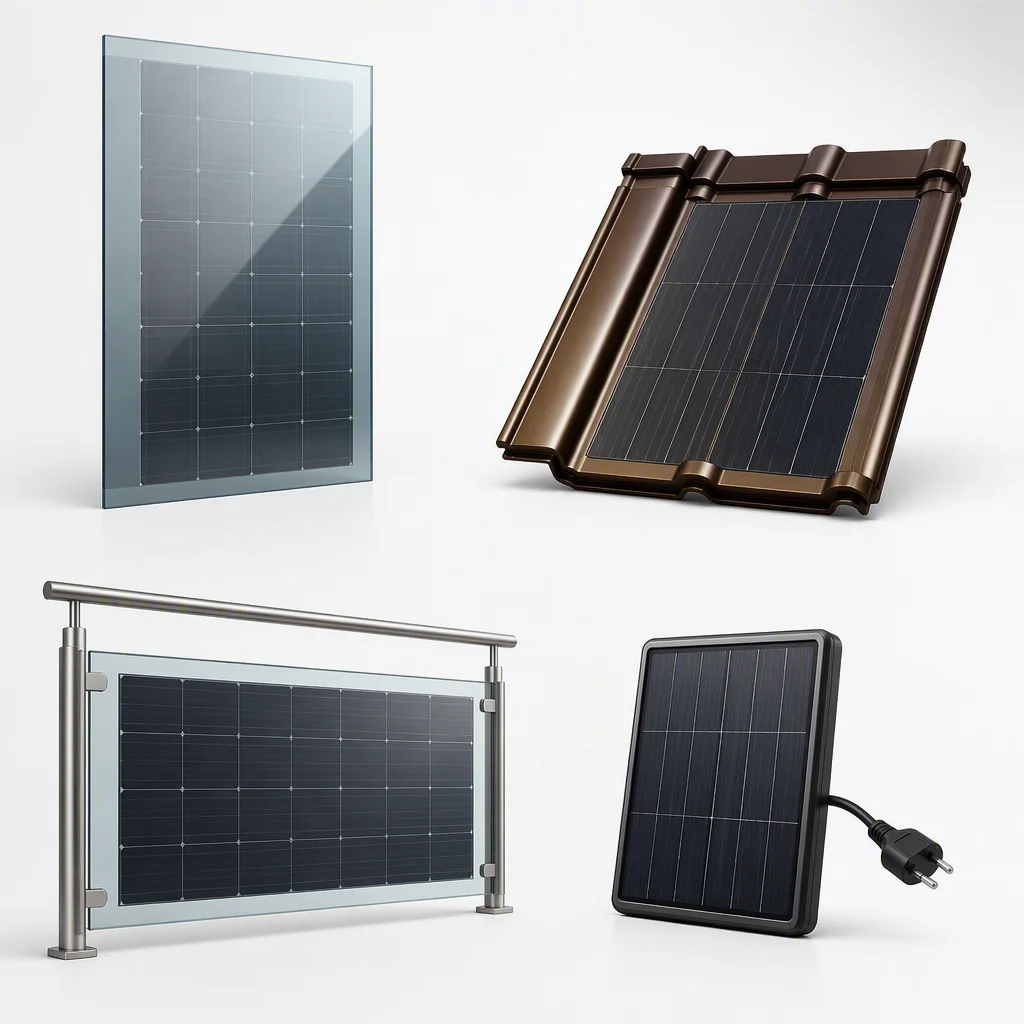

One building skin, four module formats
BIPV replaces conventional building materials with modules that generate — which means the module has to follow the architecture, not the other way around. We build four families and engineer them per project:
- Frameless glass-glass — no aluminium frame, flush integration with glazing systems
- Solar roof tiles — 90–110 W tile formats that read as slate or tile from street level
- Balcony / plugin — 100–200 W modules for railings and plug-in apartment systems
- Custom color glass — bronze, terracotta, grey and RAL options; AR coating keeps reflection below 2%
Custom sizes run 500–2500 mm with ±2 mm tolerance, with J-box position and fixing pattern per your drawing — a typical co-development cycle is 6–8 weeks from sketch to shipment.
From balcony plug-in to facade panel
Standard formats in stock; custom sizes, colors and fixing patterns engineered per project drawing.
| Model | Type | Pmax | Efficiency | Dimensions | Glass | Use |
|---|---|---|---|---|---|---|
| EMS-90T-32 | Roof tile | 90 W | 20.8% | 420×1200 mm | 3.2+3.2 mm | Slate roof |
| EMS-100G-32 | Plugin | 100 W | 21.5% | 1000×550 mm | 2.0+2.0 mm | Balcony railing |
| EMS-110T-32 | Roof tile | 110 W | 21.0% | 500×1200 mm | 3.2+3.2 mm | Tile roof |
| EMS-150G-32 | Plugin | 150 W | 21.7% | 1200×550 mm | 2.0+2.0 mm | Balcony |
| EMS-150C-32 | Custom color | 150 W | 21.2% | 1200×600 mm | 2.0+2.0 mm | Facade, bronze/terracotta |
| EMS-200G-40 | Plugin | 200 W | 21.8% | 1300×700 mm | 2.0+2.0 mm | Balcony / facade |
| EMS-200C-32 | Custom color | 200 W | 21.4% | 1500×700 mm | 2.0+2.0 mm | Facade |
| EMS-300G-48 | Frameless | 300 W | 21.6% | 1650×990 mm | 2.0+2.0 mm | Facade / pergola |
| EMS-360G-60 | Frameless | 360 W | 21.9% | 1762×1134 mm | 2.0+2.0 mm | Roof / facade |
| EMS-400G-60 | Frameless | 400 W | 22.1% | 1909×1134 mm | 2.0+2.0 mm | Roof / carport |
All values at STC, ±3% Pmax tolerance. Custom sizes 500–2500 mm with ±2 mm tolerance; J-box position, cable exit and fixing pattern per project drawing.
Three numbers importers quote back to us
<2%
AR-coated colored glass keeps reflection below 2% — the module reads as a building surface, not a mirror.
±2 mm
Custom sizes from 500 to 2500 mm with ±2 mm tolerance, so panels line up with glazing grids and railing profiles.
IEC + Class A
IEC 61215/61730, CE and ISO 9001/14001/45001 plus IEC 62941, with a Class A fire rating option and UL 61730 for North America; 15/30-yr warranty on all formats.
Where the envelope generates

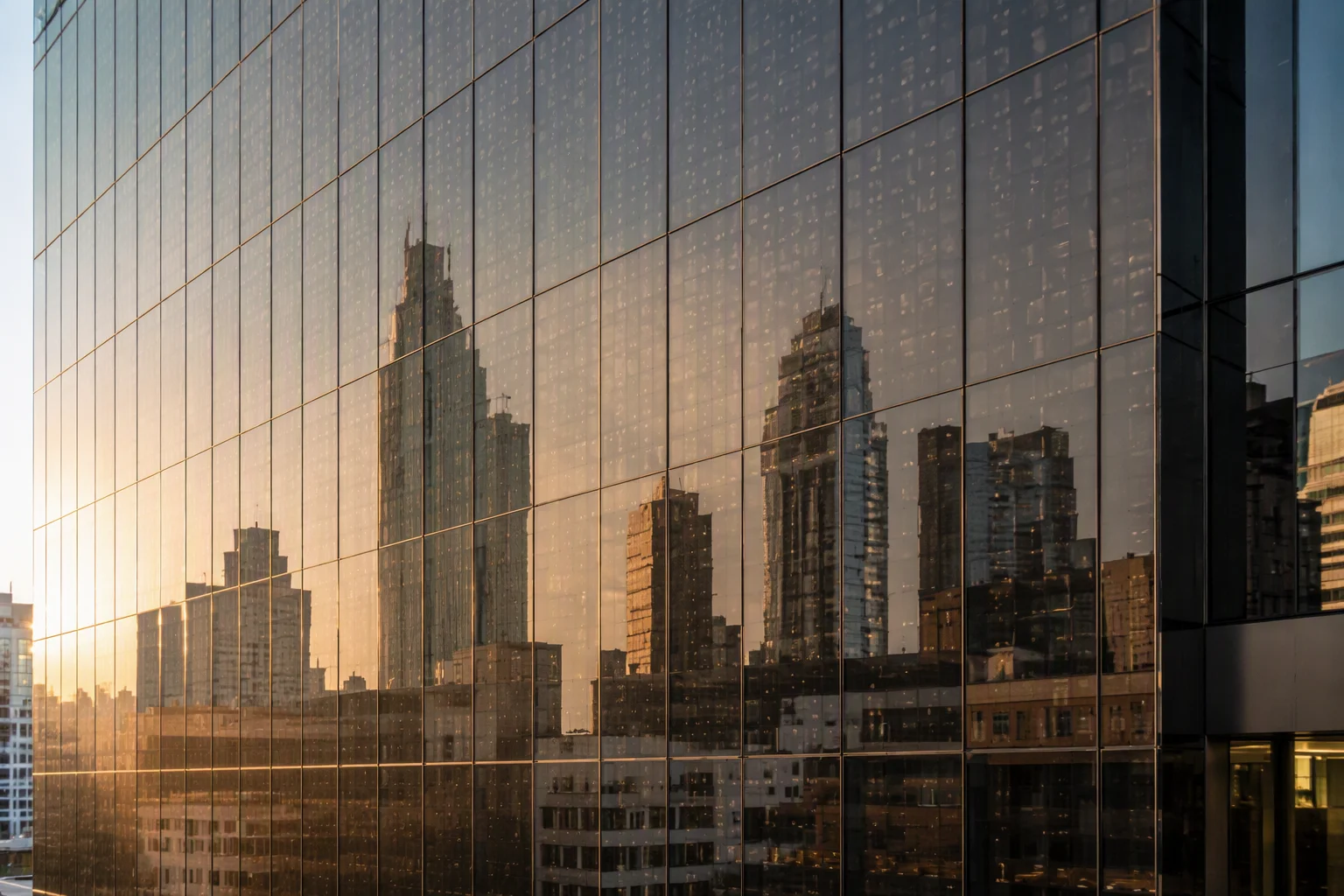

Curtain walls
Dark bronze and grey glass panels as the cladding itself — generation built into the elevation.
Frameless & tiles
Frameless 300–400 W panels or 90–110 W solar tiles that follow the roof's rhythm — China added 36 GW of rooftop in Q1 2025 alone.
Pergolas & carports
Frameless panels as structural shade over terraces, walkways and parking.
Plugin railing
100–200 W plugin modules for apartment residents — the fast-growing EU rental segment.
Before you send the RFQ
Answers to the four questions that decide a BIPV order. The full 16-question FAQ covers MOQ, shipping and warranty terms.
Full FAQCan you match my facade color?
What is the lead time for custom BIPV?
Which certificates apply to building products?
Who handles the engineering?
Send the drawing — we'll engineer the glass.
Dimensions, color and fixing pattern. Co-development quote in 24 h.
